SSA-PC250E-IP

Design Concept

Maintaining the fundamental performance of the [STF-series] while enhancing operability to pursue ultra-high precision patterns. Additionally, with its extensive options, the unit can meet a wide range of requirements from various production fields.

Feature

  • Precise alignment with image processor
  • Printing parameter setting by touch panel
  • Corresponding to equip clean cover (OP)
Request Information

Features

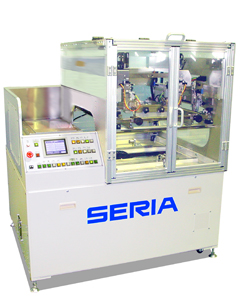

SSA-PC250E-IP

Semi-Auto Printing Machine

Design Concept

Maintaining the fundamental performance of the [STF-series] while enhancing operability to pursue ultra-high precision patterns. Additionally, with its extensive options, the unit can meet a wide range of requirements from various production fields.

  • Precise alignment with image processor
  • Printing parameter setting by touch panel
  • Corresponding to equip clean cover (OP)
ssa-pc250e-1

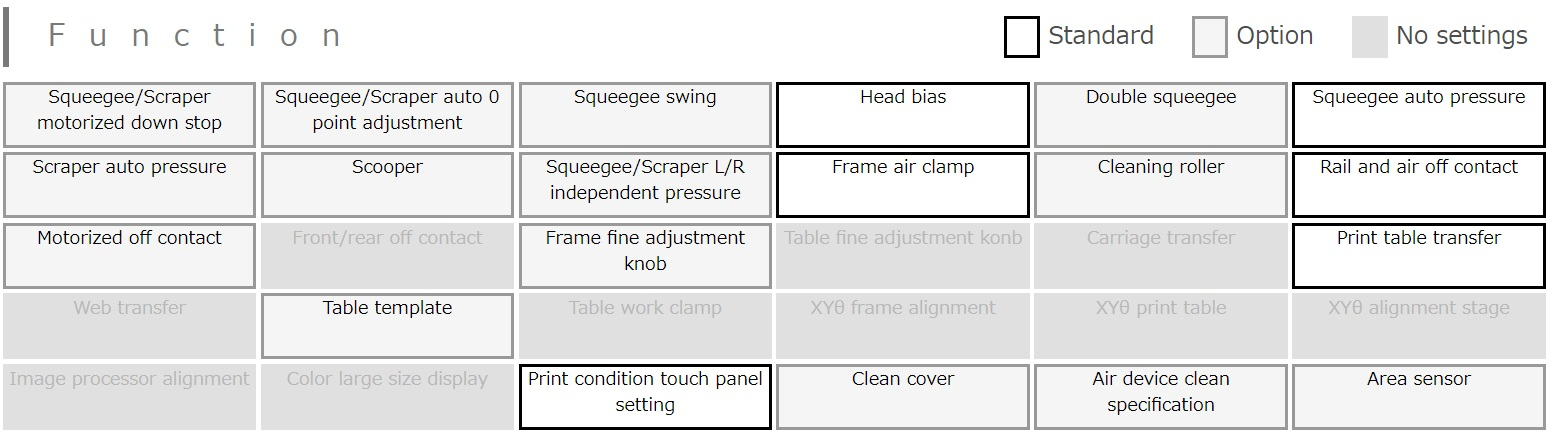

ssa-pc250e_1

Specifications

Max. Work Size W250×D250 mm
Min. Work Size W50×D50 mm
Work Thickness 0.1t-5.0t mm
Max. Frame Size W550×D550 mm
Min. Frame Size W320×D320 mm
Frame Thickness 15-30 mm
Frame Holders Pneumatic Clamp 4 Points
Swing Type
Frame Bar Holder Rear Size Pneumatic Clamp
Up/Down Adjustment Method Manual knob adjustment
Squeegee Pressure 3-30 kg
Up/Down Adjustment Volume 30 mm
Squeegee Angle 90°-60°
Squeegee Speed 5-300 mm/sec
Squeegee Stroke 365 mm
Clearance Adjustment 0-10 mm
Squeegee Bias Angle ±3°
Print Table Size W350×D510 mm
Table Height 987 mm
Table Stroke 690 mm
Vacuum Area W240×D240 mm
Vacuum Hole Diameter / Pitch φ1.4 mm / 20 mm
Processing System Binary Level + Outline processing
CCD Camera 2 sets
Weight Approx. 750 kg
Power Supply 3φ AC200V 50/60Hz 3 kW
Compressed Air 50 liters/min. (0.5 MPa)
