SFA-RR500IP

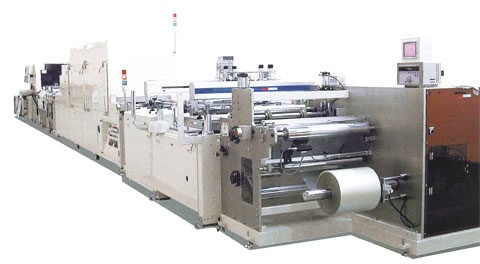

Roll to Roll Automatic Printing machine

Design Concept:

A roll-to-roll system is specialized for handling roll-form materials, featuring a fully automatic loading and unloading system designed for wide-sized materials that are difficult to handle.



Feature:

  • Various options like anti-meandering function and so on
  • Stetting pattern gap (table slide)

SFA-RR500IP

Roll to Roll Automatic Printing machine

Design Concept:

A roll-to-roll system is specialized for handling roll-form materials, featuring a fully automatic loading and unloading system designed for wide-sized materials that are difficult to handle.

Feature:

  • Various options like anti-meandering function and so on
  • Stetting pattern gap (table slide)

sfa-rr500ip_1-1

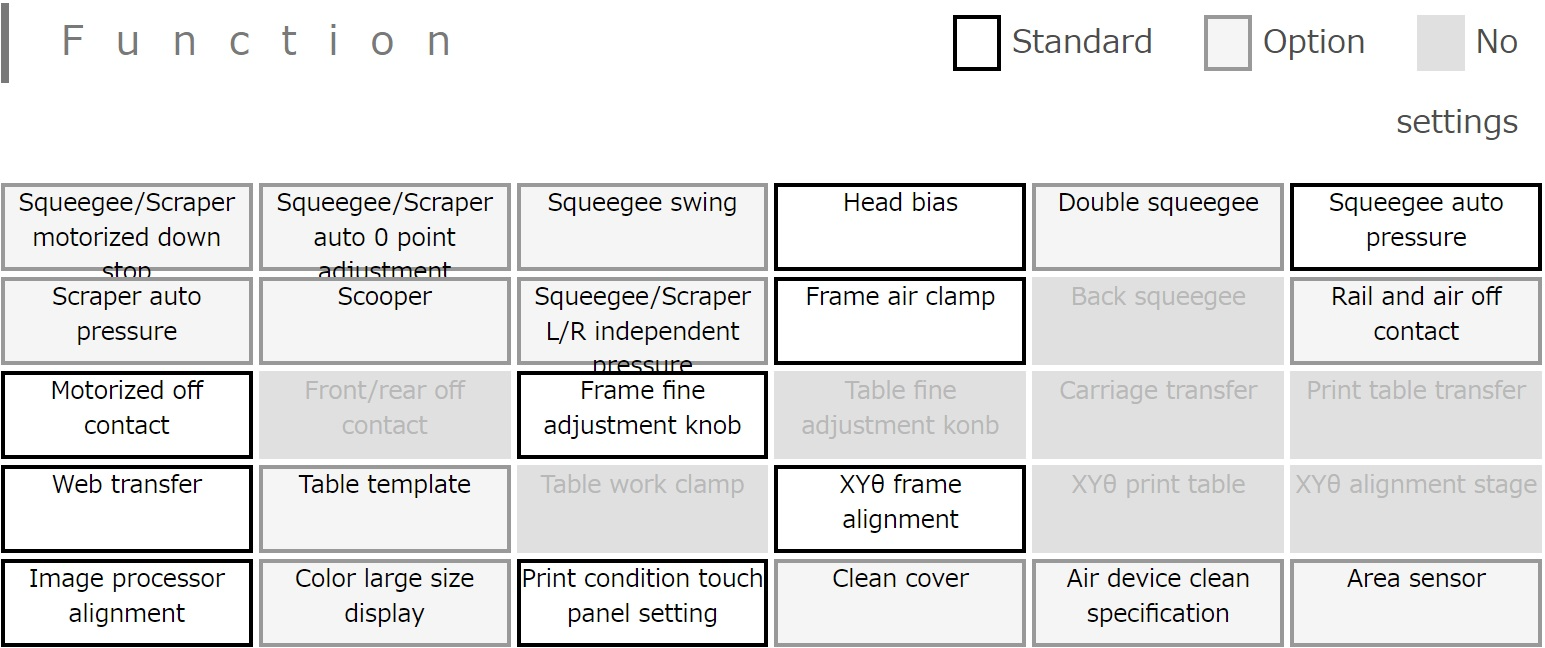

sfa-rr500ip_2

Specifications

Max. Print Size W200 × D158 mm
Min. Print Size W50 × D48 mm
Frame Size W320 × D320 - W450 × D450 mm
Squeegee Stroke 350 mm
Peel Off 0-20 mm
Squeegee Pressure L/R independent auto. Pressure
Work Guide Width Parameter setting by touch panel
Driving Mechanism Resolution: 0.002 mm
Alignment Accuracy ±10 µm
Image Processing Binary level + Outline Process
View Range 7.5 × 7.5 mm
Tape can be used 48.0 - 158.0 mm
Max. outer dimension of usable reel φ750 mm
Mounting inner diameter of usable reel with 1" or 3" air chuck
Power Supply 3φ AC200V 50/60Hz 4.0 kW
Compressed Air 50 liters/min. (0.54 MPa)
Dimensions L3950 × W1347 × H1800 mm
Weight 1000 kg
