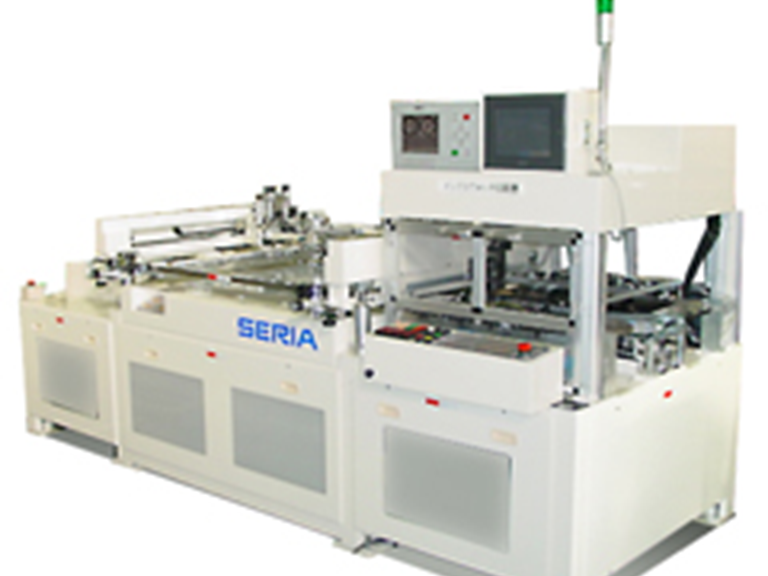

SFA-PC610CTN

Full-Auto Printing Machine

Design Concept

The bestselling fully automatic screen printer is ideal for printing substrates. It can be customized to produce an original unit tailored to the customer's specifications with a range of options available.

Feature:

  • Precise alignment with image processor
  • Work transfer with carrier table with mechanical clamp
  • High speed
Request Information

SFA-PC610CTN

Full-Auto Printing Machine

Design Concept

The bestselling fully automatic screen printer is ideal for printing substrates. It can be customized to produce an original unit tailored to the customer's specifications with a range of options available.

Feature:

  • Precise alignment with image processor
  • Work transfer with carrier table with mechanical clamp
  • High speed



pe_ryunrone_2

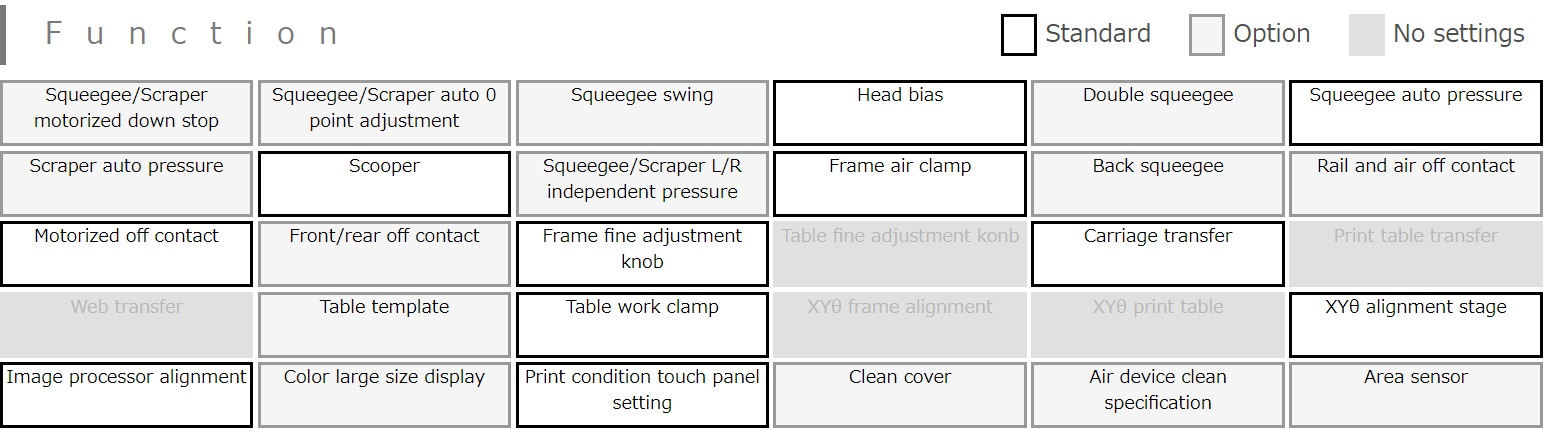

sfa-pc610ctn_1

Specifications



Max. Work Size W600×D600 mm (varies depending on the thickness of substrate)
Work Thickness 0.1t-2.3t mm
Work Weight Max. 5 kg
Max. Frame Size W1100×D1100 mm
Min. Frame Size W600×D600 mm
Frame Thickness 30t-40t mm / 20t-30t mm (with Spacer)
Frame Holders Support at Front and Rear Side (Front: Swing Type)
4 Position Pneumatic Clamp + Manual Knob at Front and Rear Side Each 2 Positions
Frame Bar Holder Rear Size Pneumatic Clamp
Peel Off 0-15 mm
Peel Off System Cam and AC servo motor drive (flat when ink coat)
Squeegee Pressure 6-80 kg
Squeegee Adjustment 45 mm
Squeegee Lift 40 mm
Squeegee Angle 60°-90°
Squeegee Bias Angle ±5°
Squeegee Speed 5-500 mm/sec
Squeegee Stroke 800 mm
Scooper Unit Type
Clearance Adjustment 0-15 mm (Motorized)
Sub-Lift Volume 330 mm (Screen Frame Auto Lock at Top End)
Print Table Size W850×D900 mm
Vacuum Area W600×D600 mm
Vacuum Hole Diameter / Pitch φ1.4 mm / 20 mm
Table Fine Adjustment Method by Three Position Nucri-Knob as The Front
Table Height 940 mm
Weight 1200 kg
Power Supply 3φ AC200V 50/60Hz 2 kW
Compressed Air 50 liters/min. (0.54 MPa)
