SFA-PC605YIP-N

Full-Auto Printing Machine

Design Concept:

A fully automatic screen printer designed for film substrates, featuring not only the conventional CCD camera auto-alignment function but also an added numerical control suitable for thin materials and hole plugging applications.

Feature:

  • Vacuum pad type carrier mechanism (loading/unloading)
  • Precise alignment by image processor
  • Possible to handle thin material
Request Information

SFA-PC605YIP-N

Full-Auto Printing Machine with CCD Camera (high speed type)

Design Concept:

A fully automatic screen-printing line system comes with an integrated loading and unloading unit, boasting high-speed and high-precision capabilities.

Feature:

  • Stacked loading, alignment, print, ejection and receiving line
  • High speed (less than 6 sec./panel)
  • Precise alignment by image processor



sfa-pc605yip-n_1-1

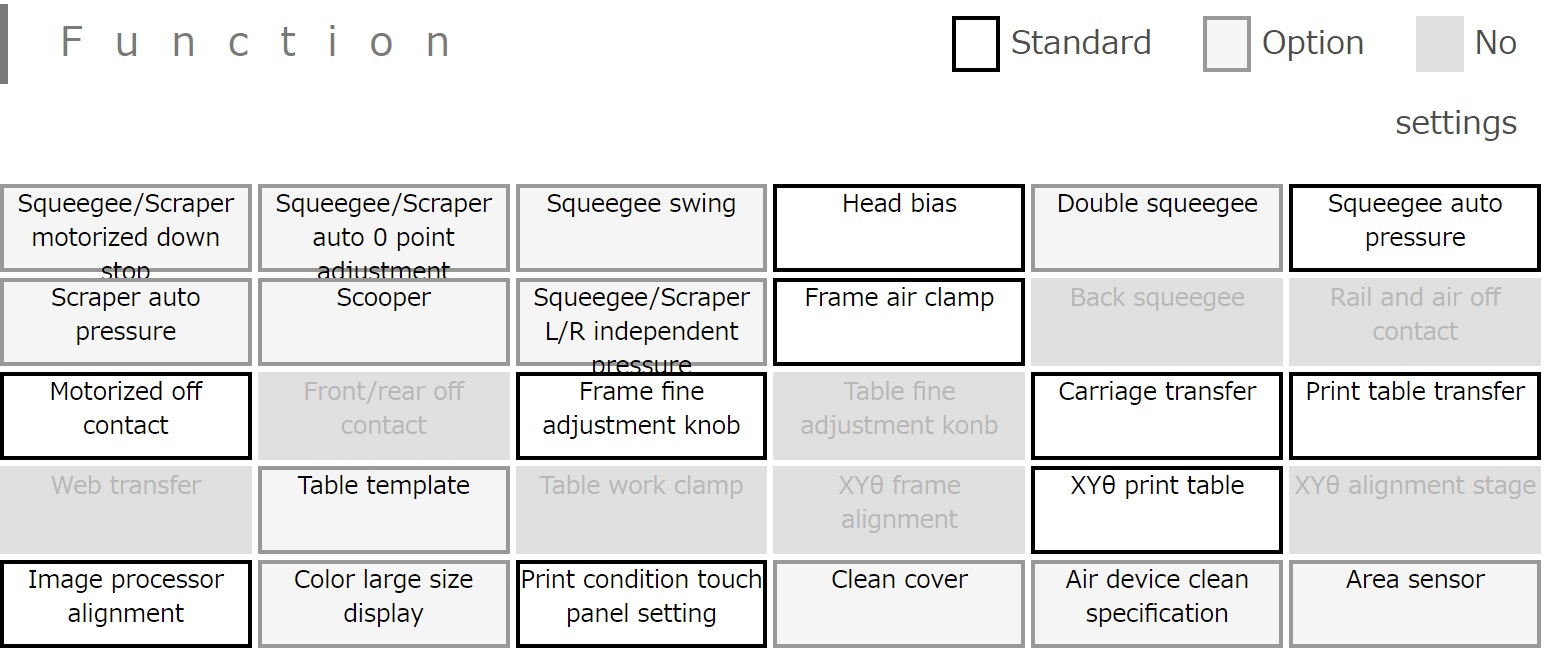

sfa-pc605yip-n_2

Specifications

Max. Work Size W510×D605 mm
Min. Work Size W250×D400 mm
Max. Print Size W500×D600 mm
Work Thickness 0.3t-2.0t mm
Max. Frame Size W950×D950 mm
Min. Frame Size W680×D680 mm
Frame Thickness 30t-40t mm
Frame Holders Pneumatic Clamp 4 Points
Swing Type
Frame Bar Holder Rear Size Pneumatic Clamp
Peel Off 0-20 mm
Peel Off System Cam and AC servo motor driven (flat when ink coat)
Squeegee Pressure 6-80 kg
Up/Down Adjustment Volume 45 mm
Squeegee-Lift Volume 40 mm
Squeegee Angle 60°-90°
Squeegee Bias Angle ±3°
Squeegee Speed 20-600 mm/sec.
Squeegee Stroke 700 mm
Scooper Unit Type
Clearance Adjustment 0-15 mm
Sub-Lift Volume 380 mm
Print Table Size W730×D700 mm
Table Stroke 950 mm
Print table drive system AC servo motor driven & belt drive
Vacuum Area W490×D590 mm
Vacuum Hole Diameter / Pitch φ1.4 mm / 10 mm
Alignment Accuracy X, Y, θ ±0.005 mm
Alignment drive system Ball screw and 5-phase stepping motor
Processing System 0.002 mm
CCD Camera Gray scale, binary level, outline process change system
CCD Camera Resolution 2 sets
Ejection conveyors pass line 890 mm
Ejection conveyor width 630 mm
Ejection conveyor length 1000 mm
Ejection conveyor speed 2-20 m/sec.
Pass line 1028 mm
Tact time 6 sec./panel
Weight 3000 kg
Power Supply 3φ AC200V 50/60Hz 6 kW
Compressed Air 130 liters/min. (0.6 MPa)
